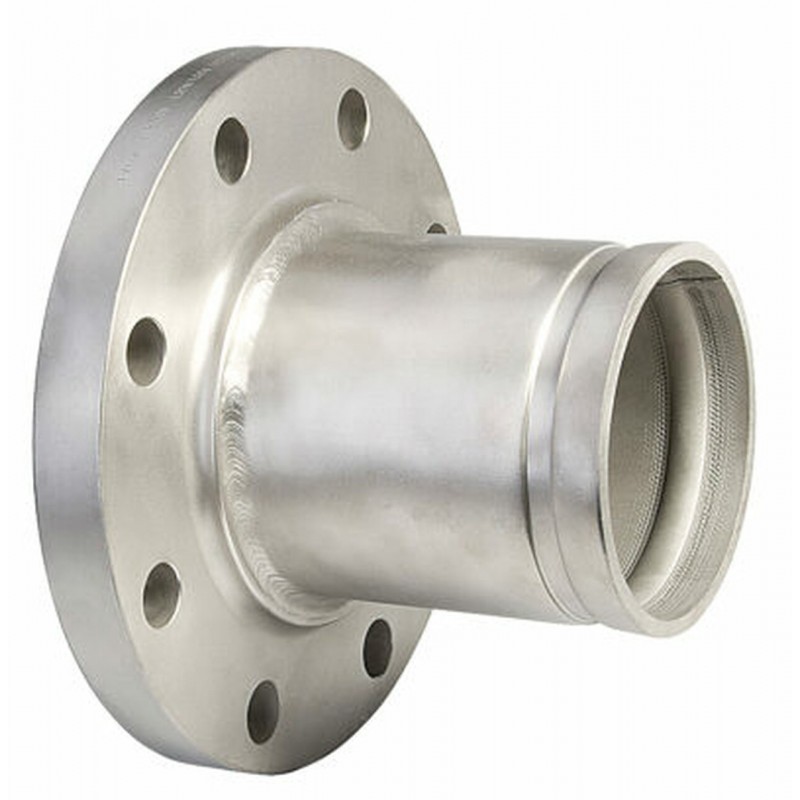

S/10 Type 304L Stainless Steel Grooved Flange Adapter 150#

Stainless Steel Grooved Reducing Flange Adapter 150# Schedule 10 Fittings | Type 304L

Redline Pipe Fabrication & Welding offers Type 304L Schedule 10 Stainless Steel Grooved Fittings. Fitting sizes range from 4” to 16”. Flange Adapters are available in any size or custom length.

Maximum Working Pressures

See data sheet for the Coupling Pressure Rating. Coupling Pressure Ratings should consider the Wall Thickness of both Pipe and Fittings.

Flange Adapters

Material Conforming to ASTM A312, Roll Grooves Conforming to ANSI/AWWA C606-04. Welding Procedure Conforming to ASME Section IX-10. Pressure Calculation Conforming to ASME B31.9-08.

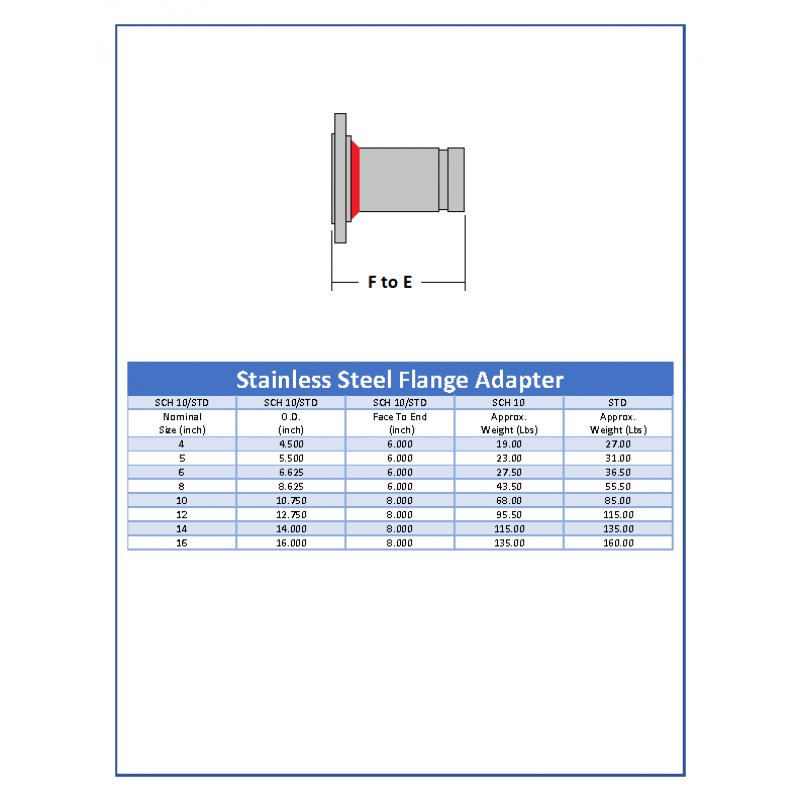

Download Datasheet: Download
